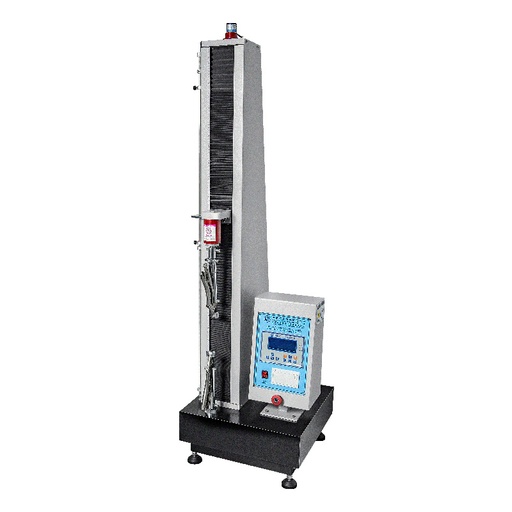

This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile,… etc., which are the basic facilities for input quality control, physical inspection, material research.

STANDARD FOR:
ISO7500/1，JJG475-88，ASTME4，DIN5122，
JISB7721/B7733，EN1002-2，BS1610，CNS9471/9470, GB，

TECHNICAL SPECIFICATIONS:
Capacity (optional) : 500kg
Unit (switchable): kgf, lbf, N, Kn
Accuracy: ±1%
Stroke (exclude the grips): 0-800mm
Speed: 0-500mm/min adjustable
Motor: AC motor with variable freq. drive
Power: 220V,15A

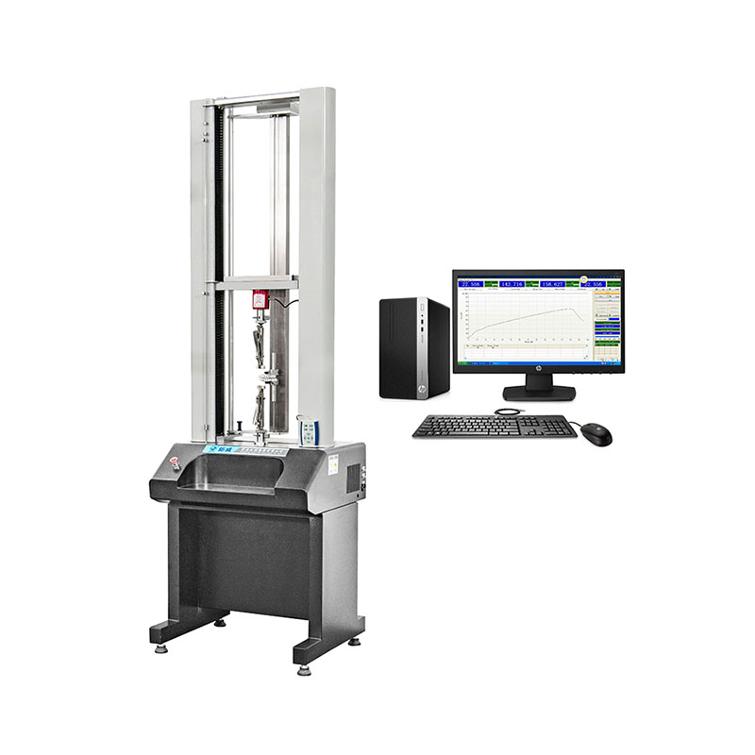

This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the field of rubber, plastic,foam,metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile,… etc., which are the basic facilities for input quality control, physical inspection, material research.

Standard for：

ISO7500/1，ISO 20345-2011，JJG475-88，ASTME4，ASTM D3574,DIN5122，JISB7721/B7733，EN1002-2，BS1610，CNS9471/9470，GB/T532-2008,GJB2589.3

Load weight 0.25 high-precision force sensor --- NTS (original import)
Capacity selection 100N 200N 500N1000N 2000N 500KG 2000KG is available
Accuracy level 0.25
Test force test range 0.2% to 100% FS
Power accuracy ±0.25%
Power decomposition 1/300000
Power magnification X1, X2, X5, X10, X20, X50, X100, etc.Automatic shift switching
Displacement indication error ±1% of the value of the whole process
Displacement resolution 0.00004mm
Motor function 0.4KW
Test width 40 width / interval / manual take point
Walking space 1500mm
Stroke Resolution 0.00004mm
Extensometer Resolution 0.0001 mm
Voltage AC 220V

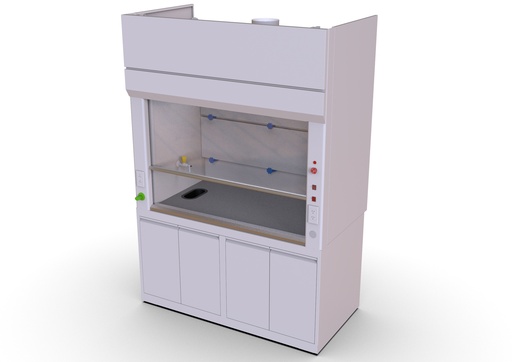

Dimensions LxWxH: 1200x800x2200

Cabinet Body: 1.2mm electrostatically powder-coated iron, Smooth matte finish (white/gray)
Working Chamber: Phenolic material resistant to chemicals
Frame Legs: Electrostatically powder-coated iron cabinet shape 1.2mm, Frame box 30x60x1.4
Design: Standard compliant
Airflow: Exhausted by an extraction fan
Door: 5mm tempered glass, smoothly sliding with a counterweight behind
Control Panel: Fan and Light switches, E-stop button, indicator lights, Control panel displaying airflow speed
Fan: Measoon specialized for chemical resistance
Carbon Filter: Carbon filter for strong-smelling chemicals,Not used for mildly odorous chemicals
Accessories: Nozzle, Sink, Valve
Air Baffle: Phenolic board to guide airflow in the correct direction
Work Surface: 18mm phenolic board resistant to chemicals
Illumination: LED light
Power: 220V/50Hz

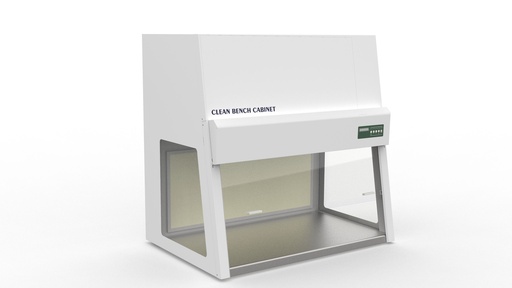

Dimensions LxWxH: 1200x790x1200

Cabinet Body: 1.2mm electrostatically powder-coated iron, Smooth matte finish (white/gray)
Working Chamber: 1.2mm thick 304 stainless steel
Frame Legs: 30x60x1.4 powder-coated iron, equipped with easy-moving wheels
Design: Tilted at 10 degrees
Airflow: Horizontal airflow
Door: 5mm tempered glass, smoothly sliding with a counterweight behind
Control Panel: Mechanical switch, Single-action touch sensor, Integrated sensor with processing capabilities
Hepa Filter: H14 99.997%
Rough Filter: Filters large dust particles
UV Light: 01 UV light in the working chamber
Illumination: LED light
Power: 220V/50Hz"

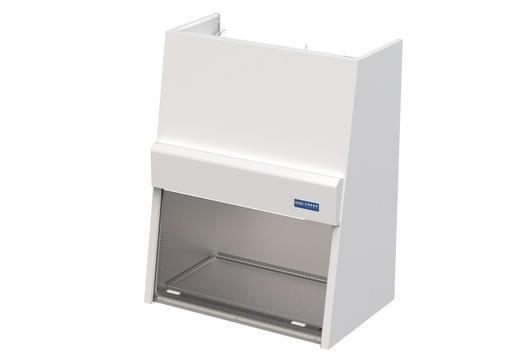

Dimensions LxWxH: 1200x790x1530

Cabinet Body: 1.2mm electrostatically powder-coated iron, Smooth matte finish (white/gray)
Working Chamber: 1.2mm thick 304 stainless steel
Frame Legs: 30x60x1.4 powder-coated iron, equipped with easy-moving wheels
Design: Tilted at 10 degrees
Airflow: Vertical airflow - Ratio 30-70
Door: 5mm tempered glass, smoothly sliding with a counterweight behind

Control Panel:
Mechanical switch
Single-action touch sensor
Integrated sensor with processing capabilities
