This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile,… etc., which are the basic facilities for input quality control, physical inspection, material research.

STANDARD FOR:
ISO7500/1，JJG475-88，ASTME4，DIN5122，
JISB7721/B7733，EN1002-2，BS1610，CNS9471/9470, GB，

TECHNICAL SPECIFICATIONS:
Capacity (optional) : 500kg
Unit (switchable): kgf, lbf, N, Kn
Accuracy: ±1%
Stroke (exclude the grips): 0-800mm
Speed: 0-500mm/min adjustable
Motor: AC motor with variable freq. drive
Power: 220V,15A

This machine is used to test tension, compression, bend, shearing force, adhesion, peeling force, tear strength, etc. of specimen, semi-product and finished product in the field of rubber, plastic,foam,metal, nylon, fabric, paper, aviation, packing, architecture, electric appliance, automobile,… etc., which are the basic facilities for input quality control, physical inspection, material research.

Standard for：

ISO7500/1，ISO 20345-2011，JJG475-88，ASTME4，ASTM D3574,DIN5122，JISB7721/B7733，EN1002-2，BS1610，CNS9471/9470，GB/T532-2008,GJB2589.3

Load weight 0.25 high-precision force sensor --- NTS (original import)
Capacity selection 100N 200N 500N1000N 2000N 500KG 2000KG is available
Accuracy level 0.25
Test force test range 0.2% to 100% FS
Power accuracy ±0.25%
Power decomposition 1/300000
Power magnification X1, X2, X5, X10, X20, X50, X100, etc.Automatic shift switching
Displacement indication error ±1% of the value of the whole process
Displacement resolution 0.00004mm
Motor function 0.4KW
Test width 40 width / interval / manual take point
Walking space 1500mm
Stroke Resolution 0.00004mm
Extensometer Resolution 0.0001 mm
Voltage AC 220V

Dimensions LxWxH: 1200x800x2200

Cabinet Body: 1.2mm electrostatically powder-coated iron, Smooth matte finish (white/gray)
Working Chamber: Phenolic material resistant to chemicals
Frame Legs: Electrostatically powder-coated iron cabinet shape 1.2mm, Frame box 30x60x1.4
Design: Standard compliant
Airflow: Exhausted by an extraction fan
Door: 5mm tempered glass, smoothly sliding with a counterweight behind
Control Panel: Fan and Light switches, E-stop button, indicator lights, Control panel displaying airflow speed
Fan: Measoon specialized for chemical resistance
Carbon Filter: Carbon filter for strong-smelling chemicals,Not used for mildly odorous chemicals
Accessories: Nozzle, Sink, Valve
Air Baffle: Phenolic board to guide airflow in the correct direction
Work Surface: 18mm phenolic board resistant to chemicals
Illumination: LED light
Power: 220V/50Hz

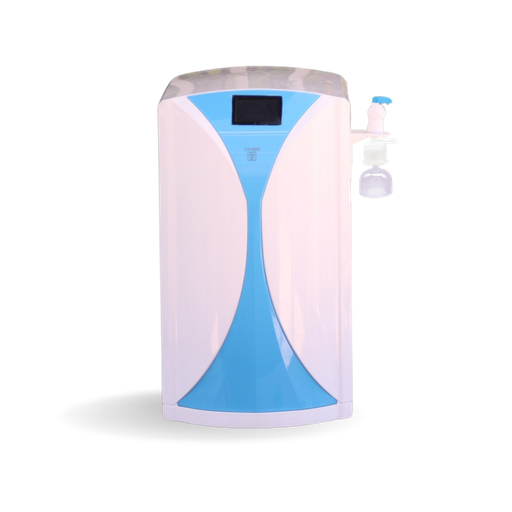

L2 HPLC is ultrapure water purification system produces ASTM D1193-06 Type II, ISO 3696 Grade 2 and JIS A2 with Conductivity, Flow, TDS indicator & Resin deion module; M.I.R (Measure.Impact.Realtime) Technology for remote monitoring & controlling. The system is equipped with 0.22 µm point-of-use filter optimized for HPLC, LC/MS application.

Conductivity: < 1.0 µS/cm at 25°C
Resistance: > 1.0 MΩ.cm at 25°C
Permeate performance per hour: 20 litres/h

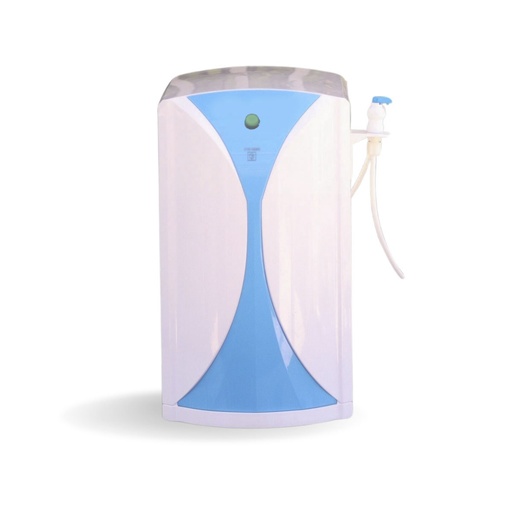

L2 BASIC is ultrapure water purification system produces ASTM D1193-06 Type II, ISO 3696 Grade 2 and JIS A2 with Conductivity, Flow, TDS meter & Resin deion module; M.I.R (Measure.Impact.Realtime) Technology for remote monitoring & controlling.

Conductivity: < 1.0 µS/cm at 25°C
Resistance: > 1.0 MΩ.cm at 25°C
Permeate performance per hour: 20 litres/h

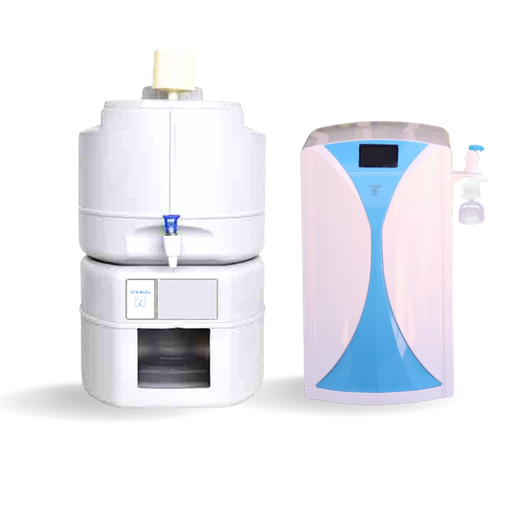

L1 CL is All-in-one system produces ISO 3696 Grade 1 & Grade 2 water/ Clinical Laboratory Reagent Water (CLSI), with Conductivity, Flow, TDS indicator & Resin deion module; UV-lamp; EDI module; M.I.R (Measure.Impact.Realtime) Technology for remote monitoring & controlling; water leakage sensor & pre-treatment module.

Conductivity: < 0.1µS/cm at 25°C
Resistance: > 10 MW.cm at 25°C
Permeate performance per hour: 20 litres/h (Grade II); 6 litres/h (Grade I)

Viscosity measuring range: 15 - 6.000.000 mPas

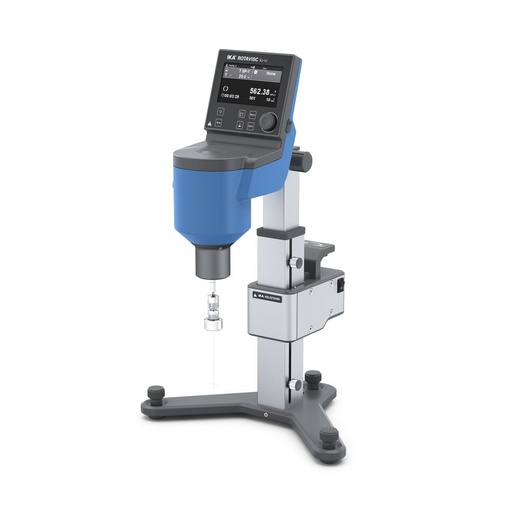

Regardless of a simple or demanding viscosity measurement - IKA ROTAVISC lo-vi HELI Complete determines the viscosity of low-viscosity liquids in all areas of application ranging from the laboratory to quality control.

The scope of delivery includes a standard spindle set (SP 1-SP 4), a protective bracket, temperature sensor and HELISTAND stand incl. T-spindle set.

Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment.

Viscosity measurement in motion
The motorized IKA HELISTAND moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample

IKA ROTAVISC lo-vi HELI Complete
Viscosity measuring range: 15 - 6.000.000 mPas

Scope of delivery
ROTAVISC lo-vi HELI Complete
SP set-1
PT 100.8
HELISTAND
T-SP-SET

Viscosity measuring range: 1 - 6,000,000 mPas

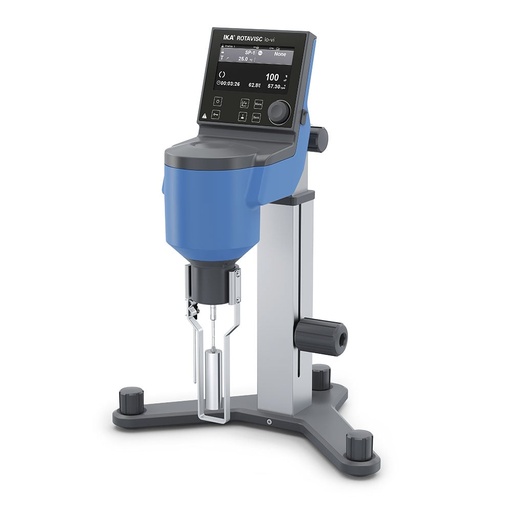

The ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set (SP1-SP4), a protective bracket, temperature sensor and ROTASTAND stand.

Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.

Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.

Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment.

IKA ROTAVISC lo-vi Complete
Viscosity measuring range: 1 - 6,000,000 mPas

Scope of delivery
ROTAVISC lo-vi Complete
ROTASTAND
SP set-1
PT 100.8
Guard rail
USB Cable - USB A to Micro-B, 2 m
